AMES OAMI Mechanical Training Manual for Standard and Portable Typewriters
By: Clarence Leroy Jones
In 3 Volumes plus Addendum - Published 1945

Volume Two: Portable Typewriters

Corona Portable Typewriter Repair

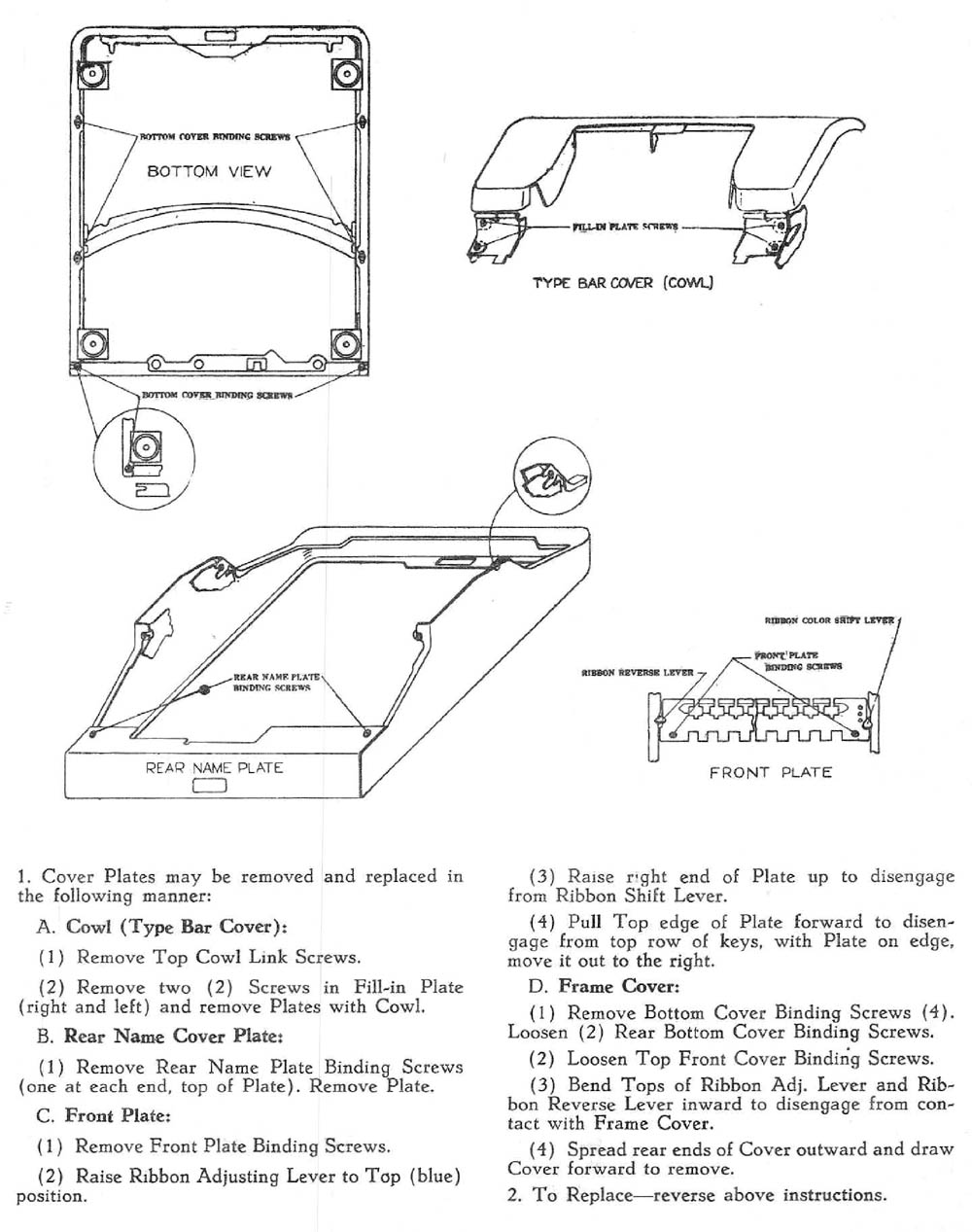

Cover Plates

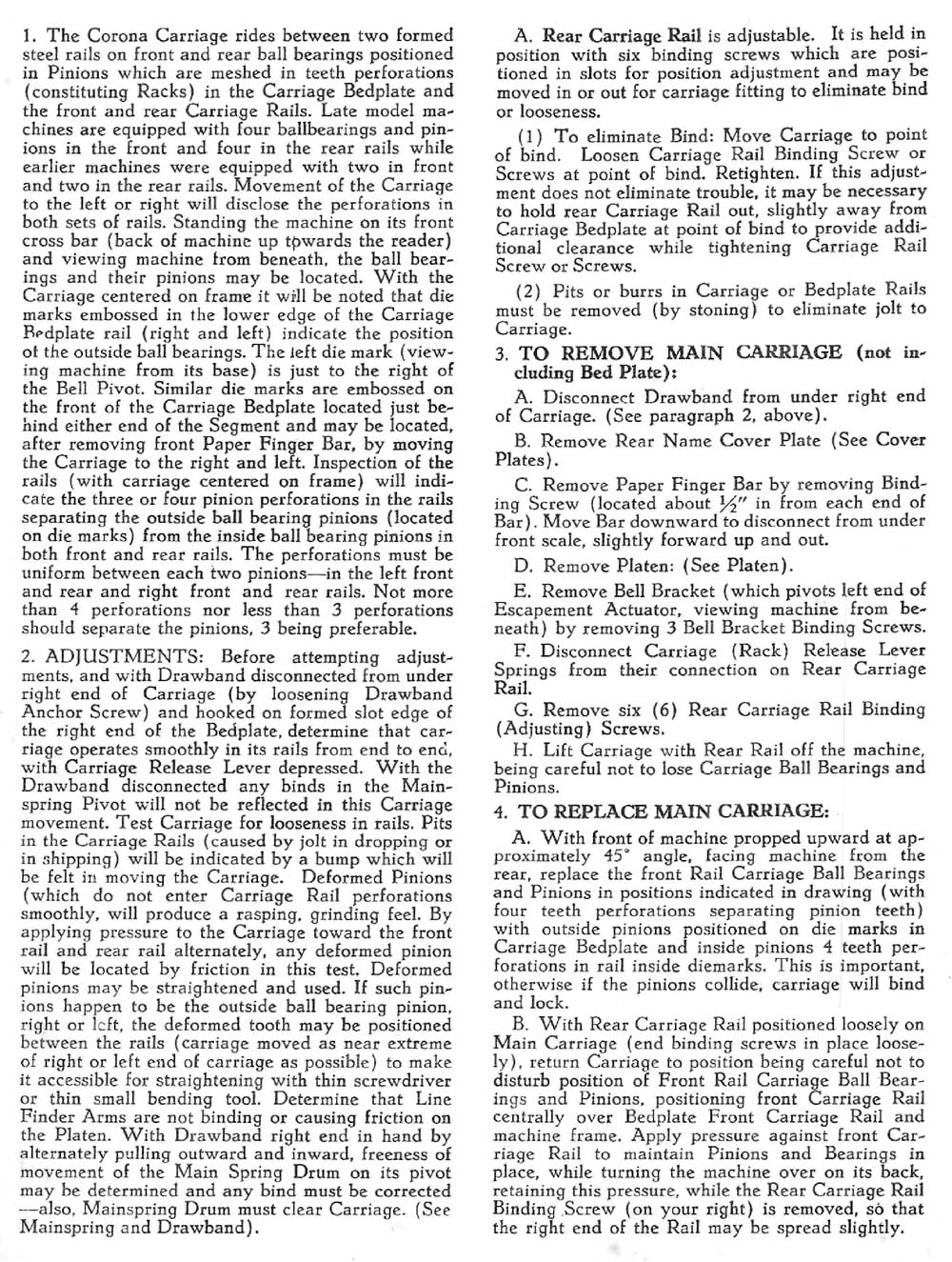

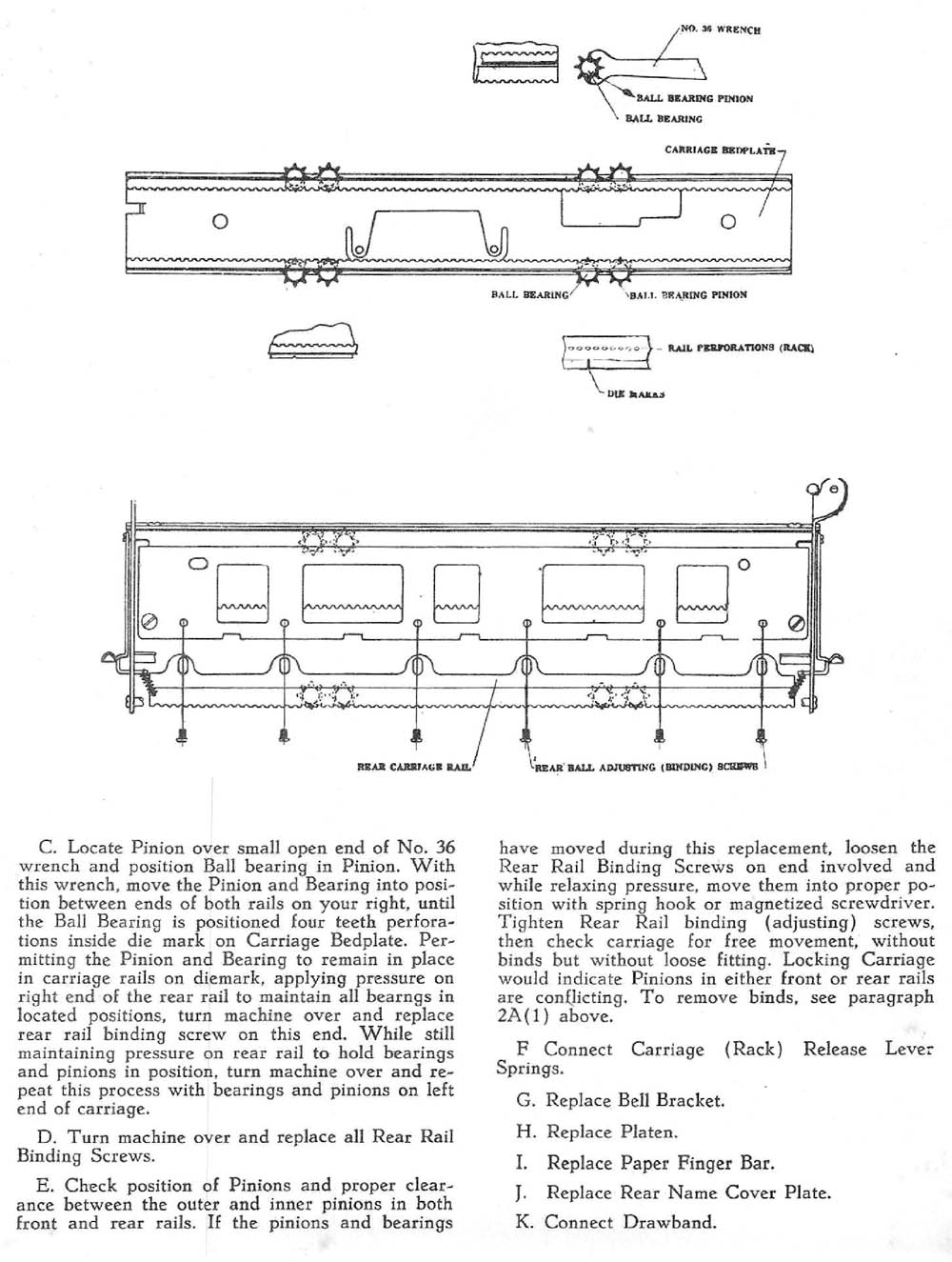

Main Carriage

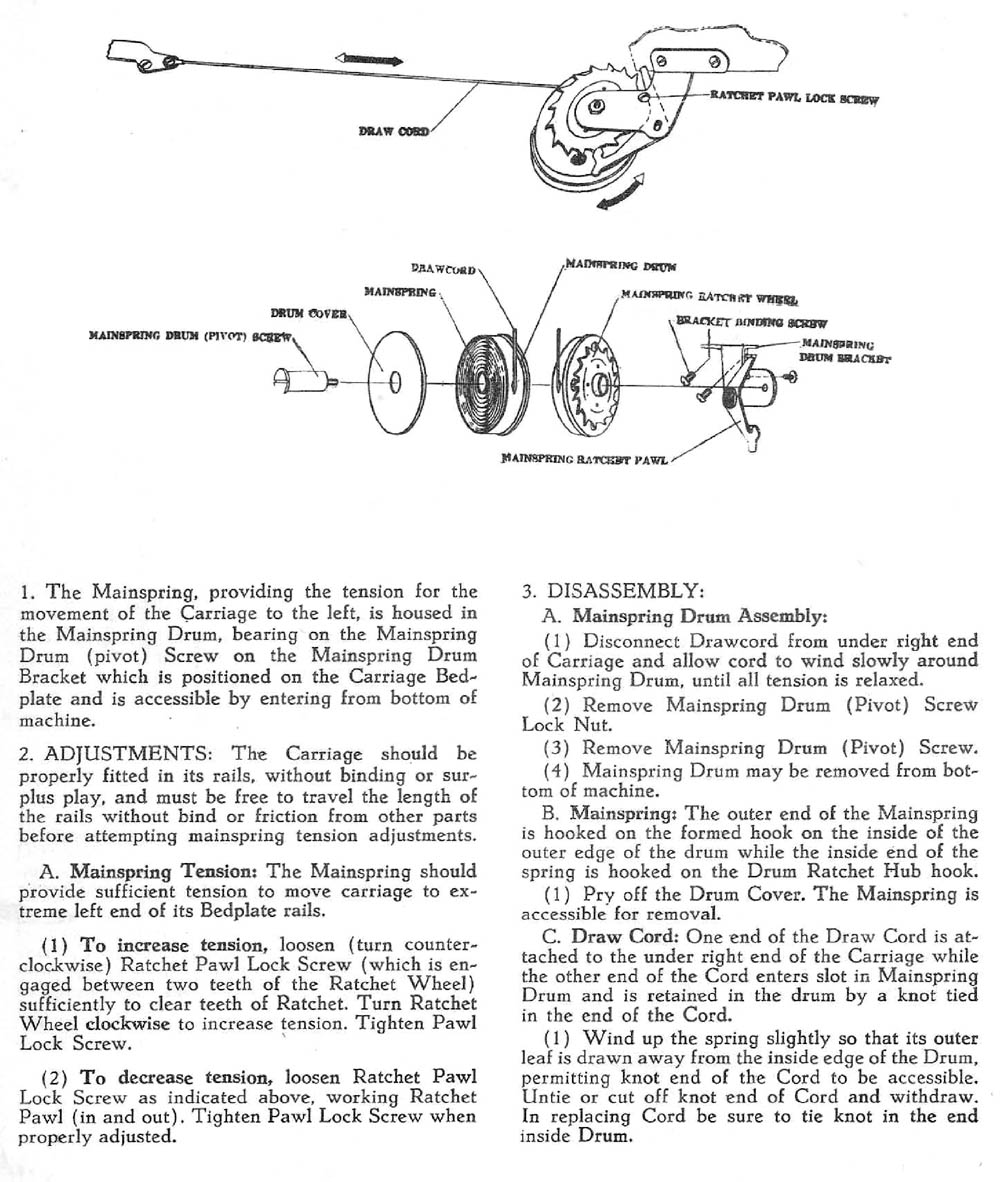

Mainspring and Drawband

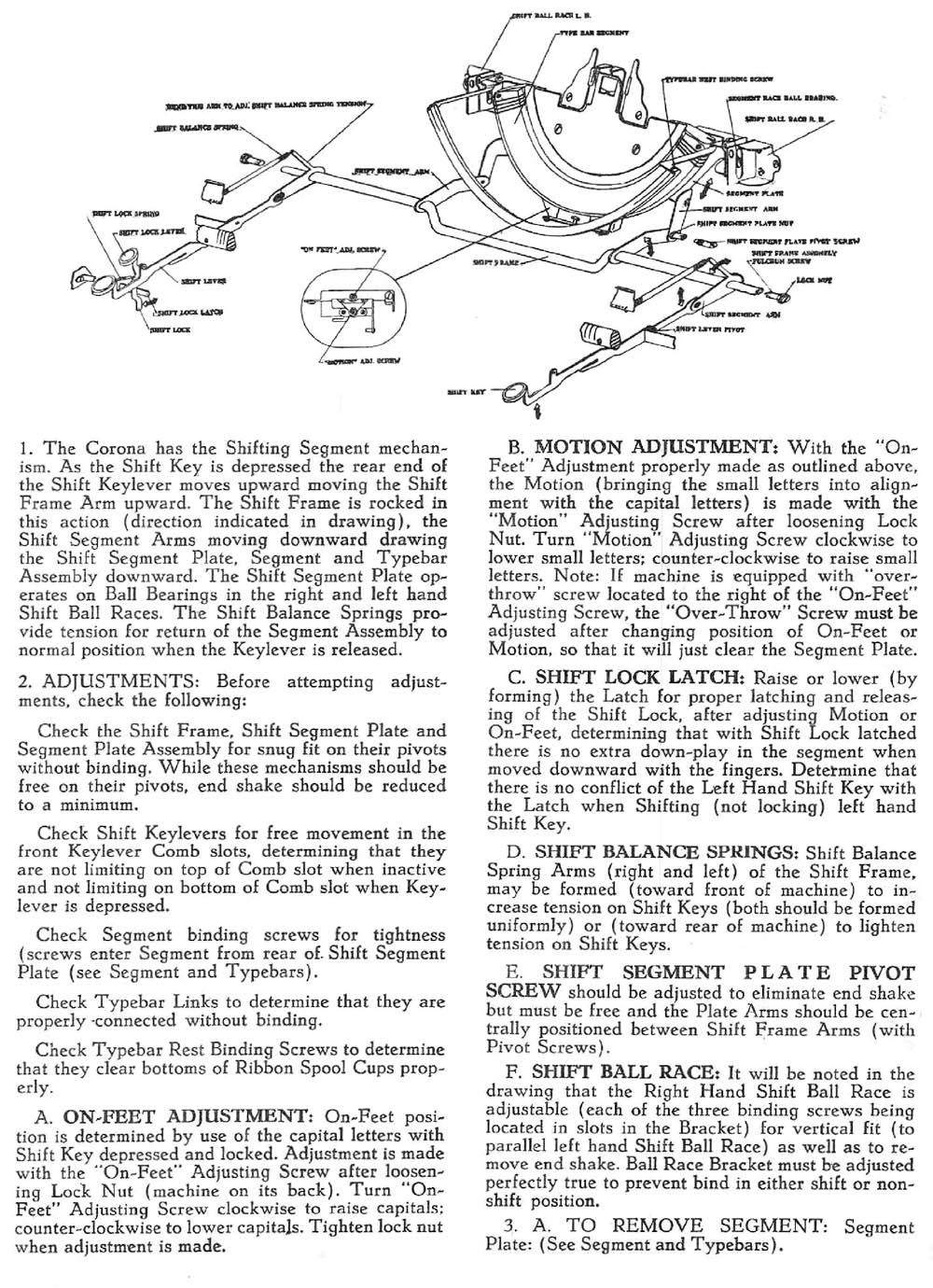

Motion and Shift Mechanism

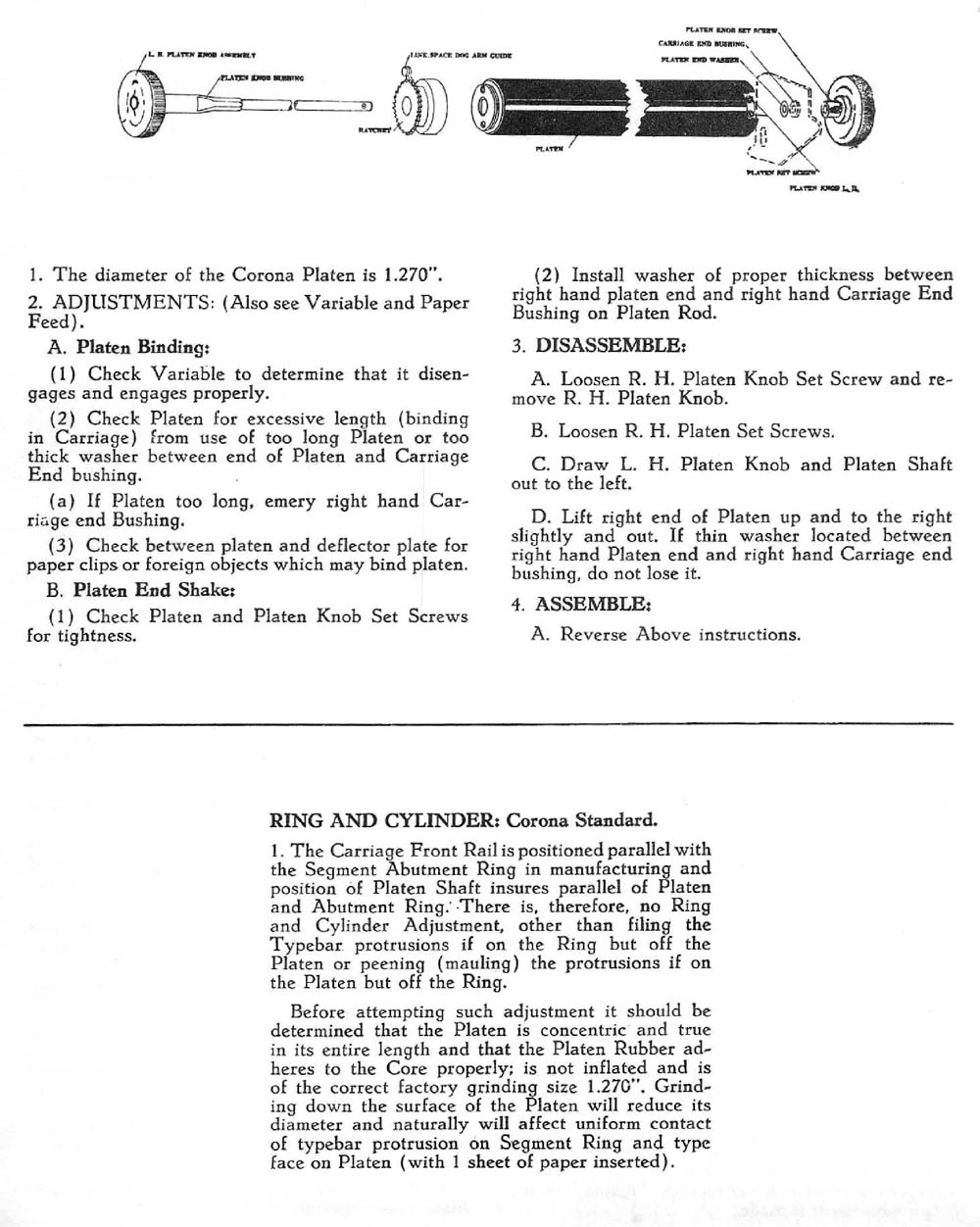

Platen

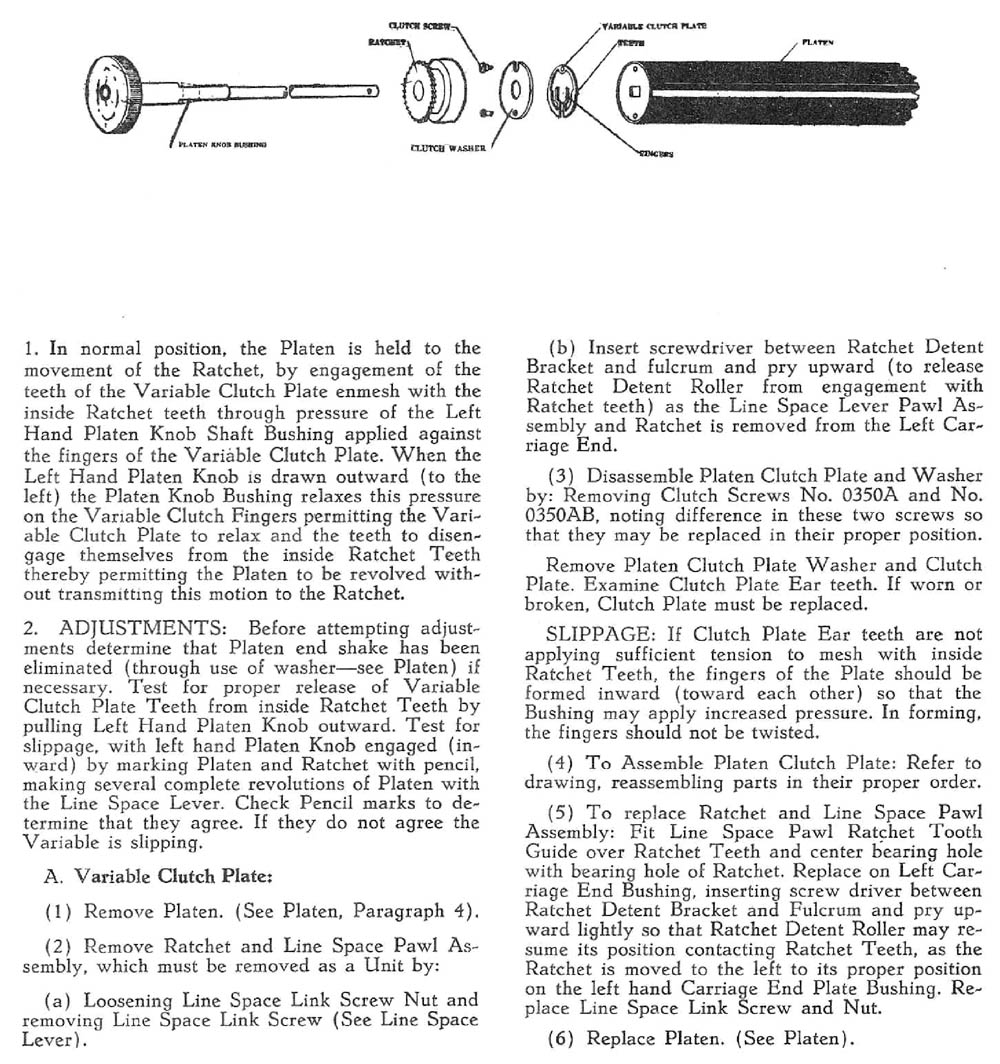

Variable

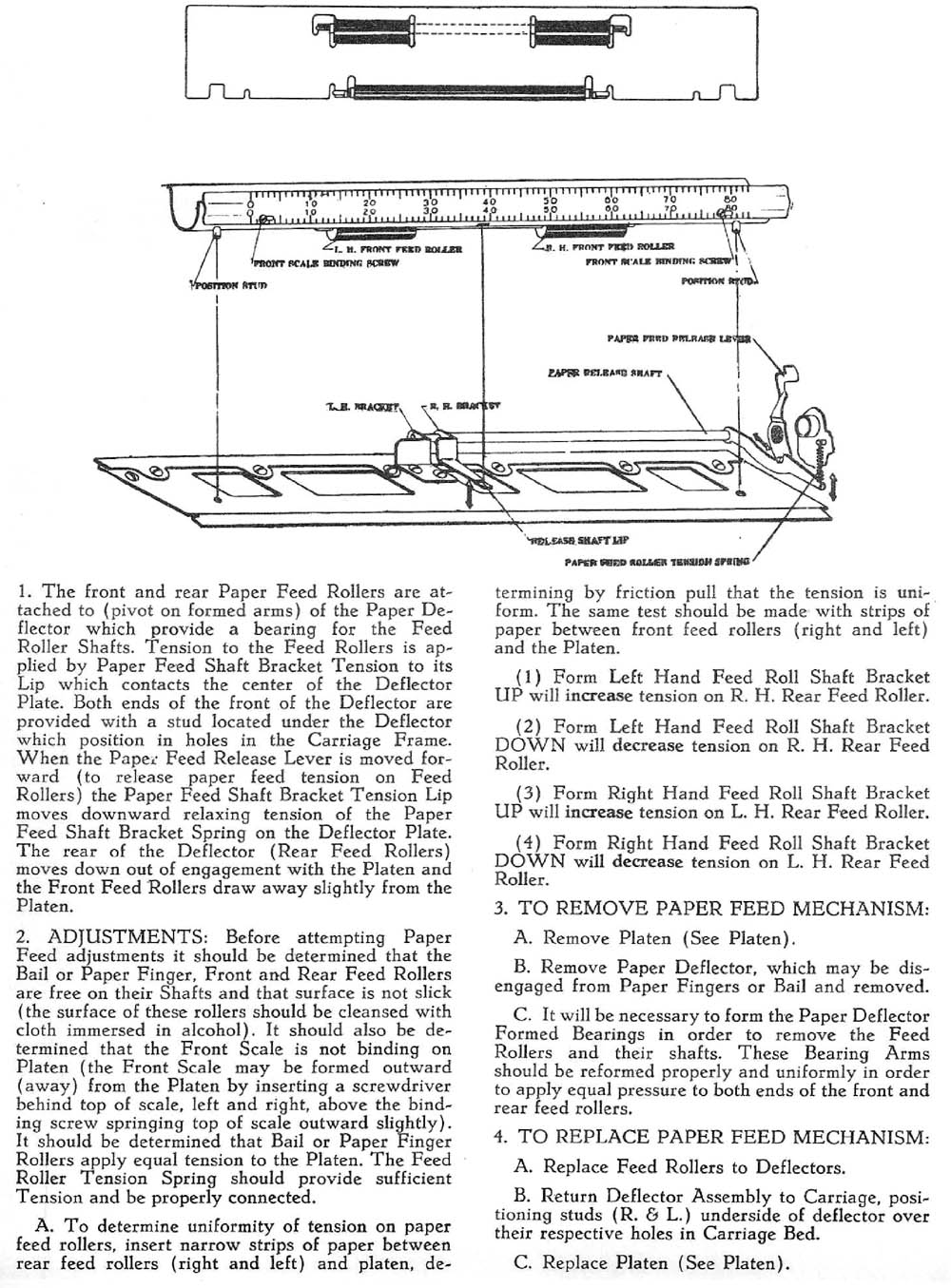

Paper Feed

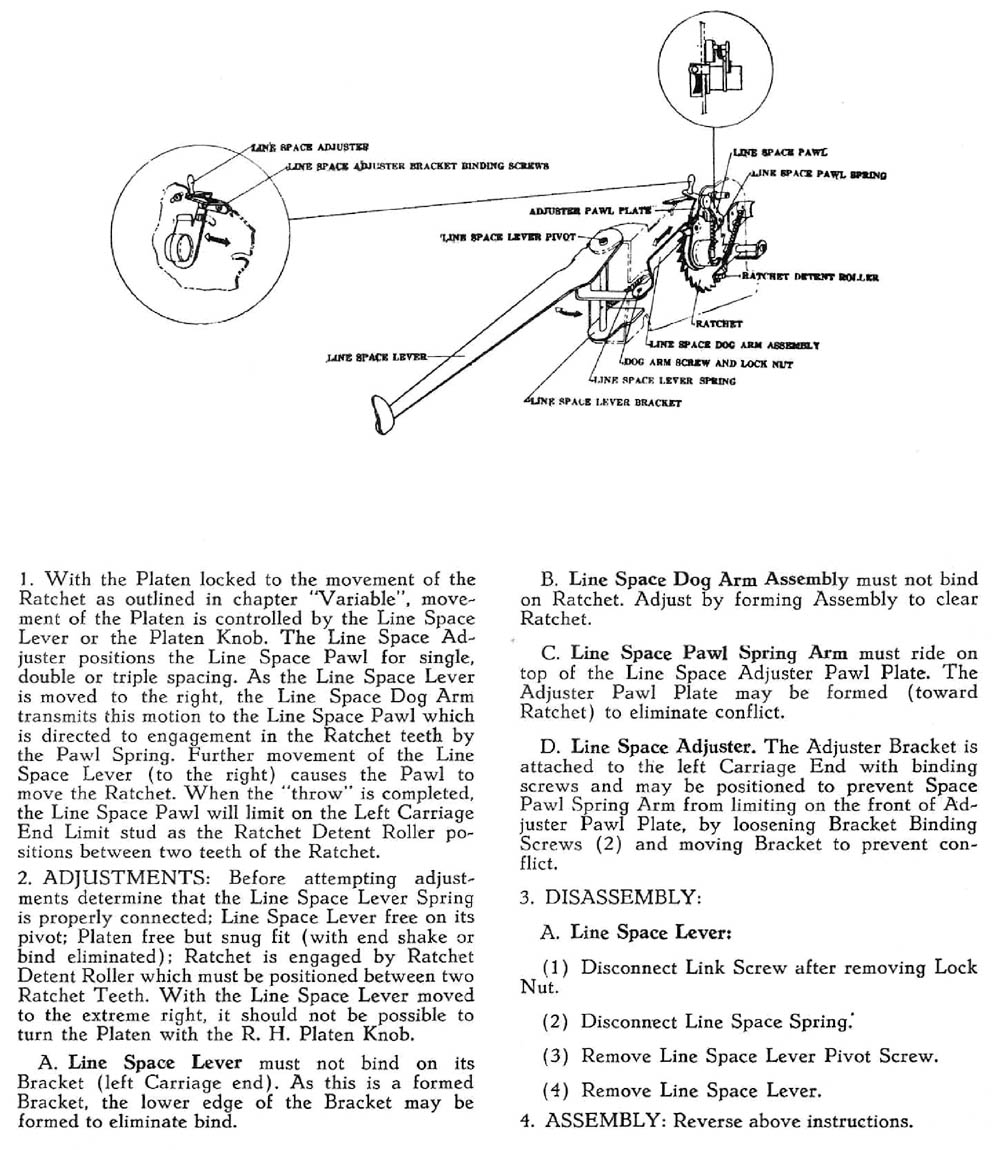

Line Space Lever

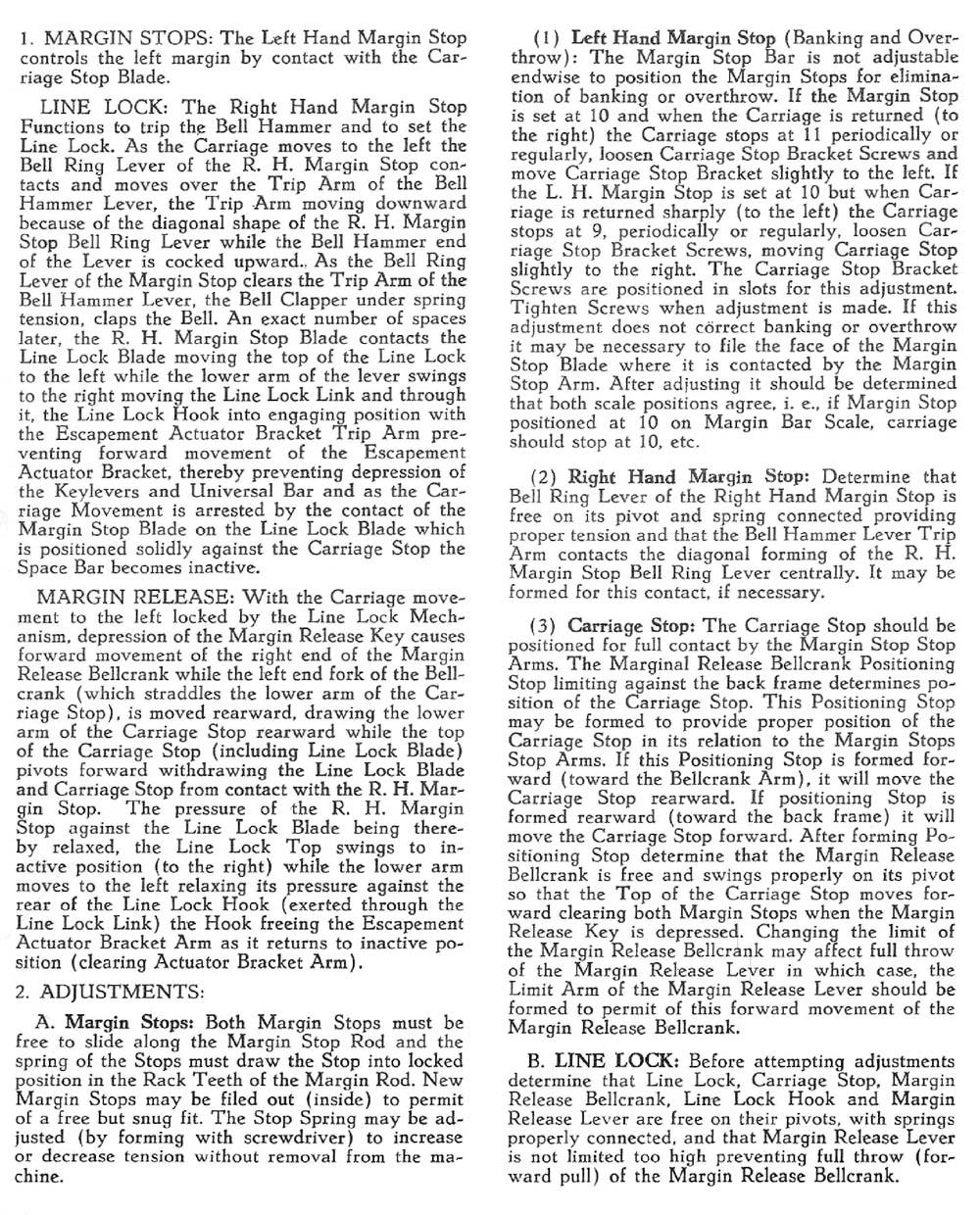

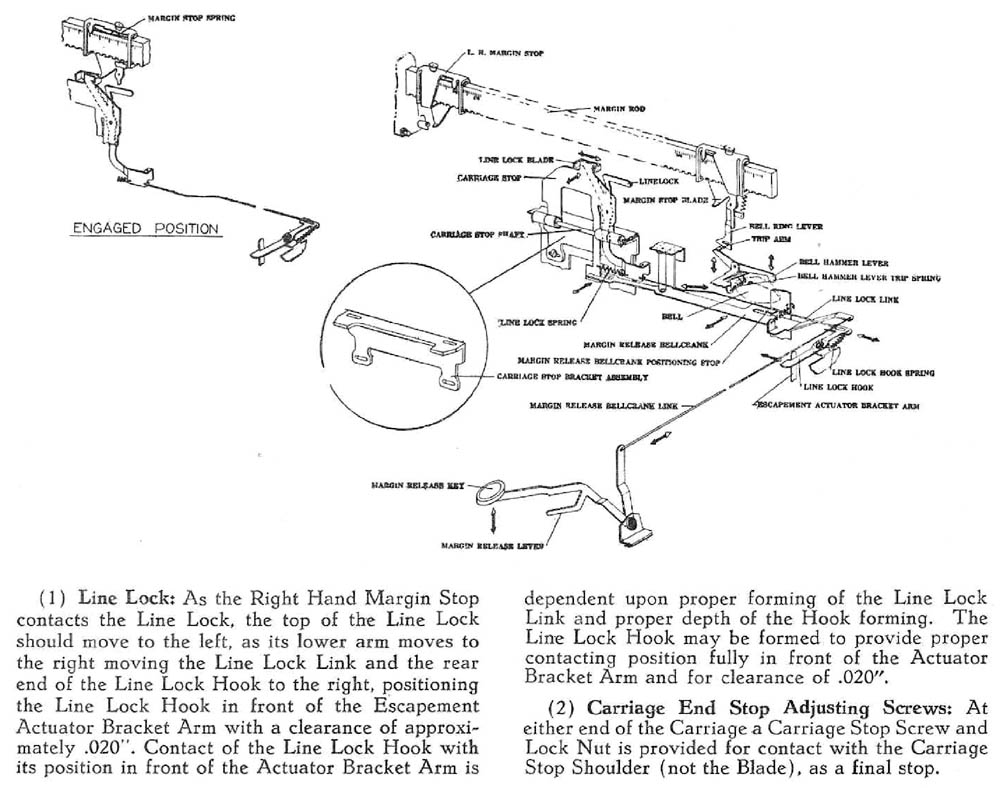

Margin Stops and Line Lock

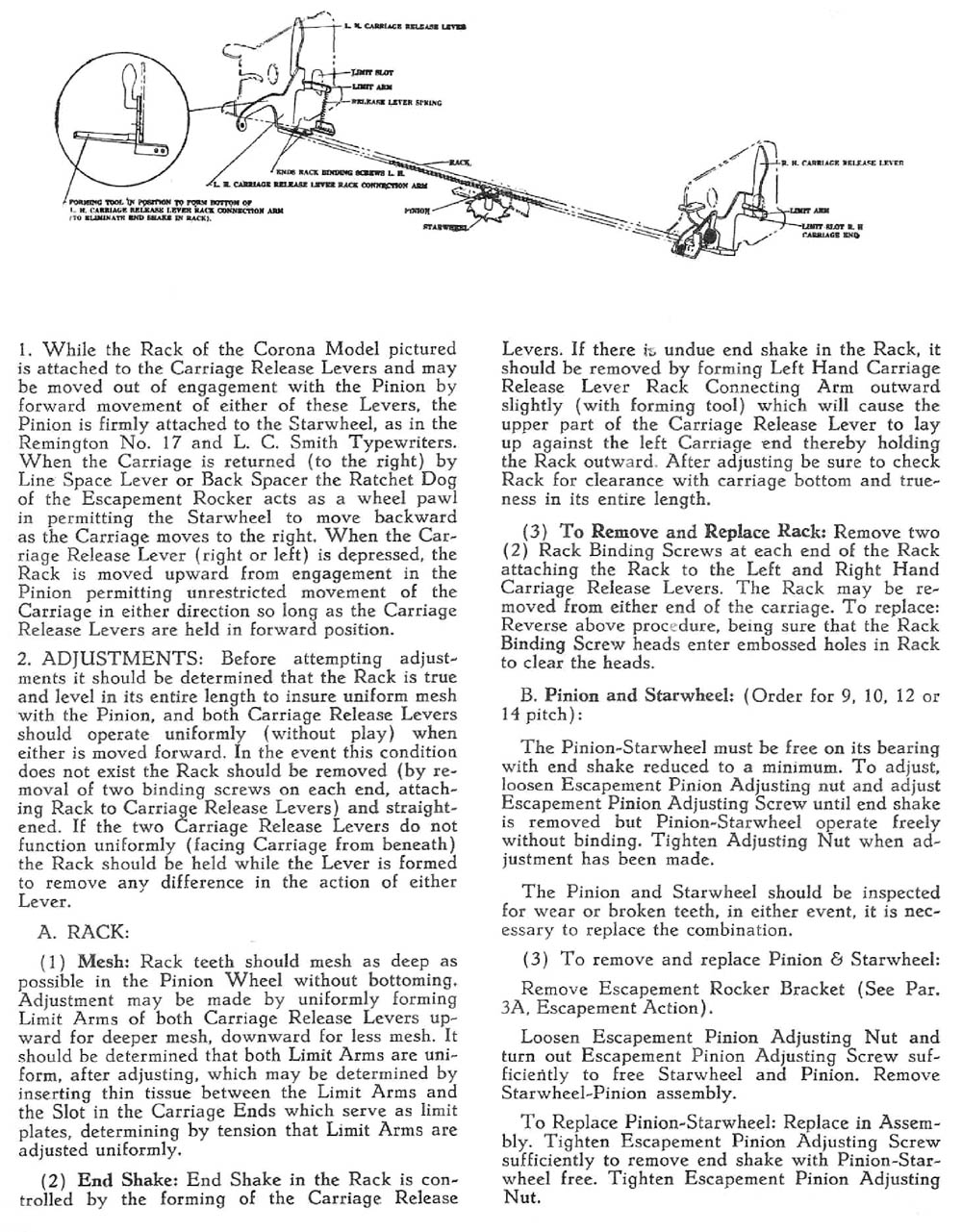

Rack, Pinion and Starwheel

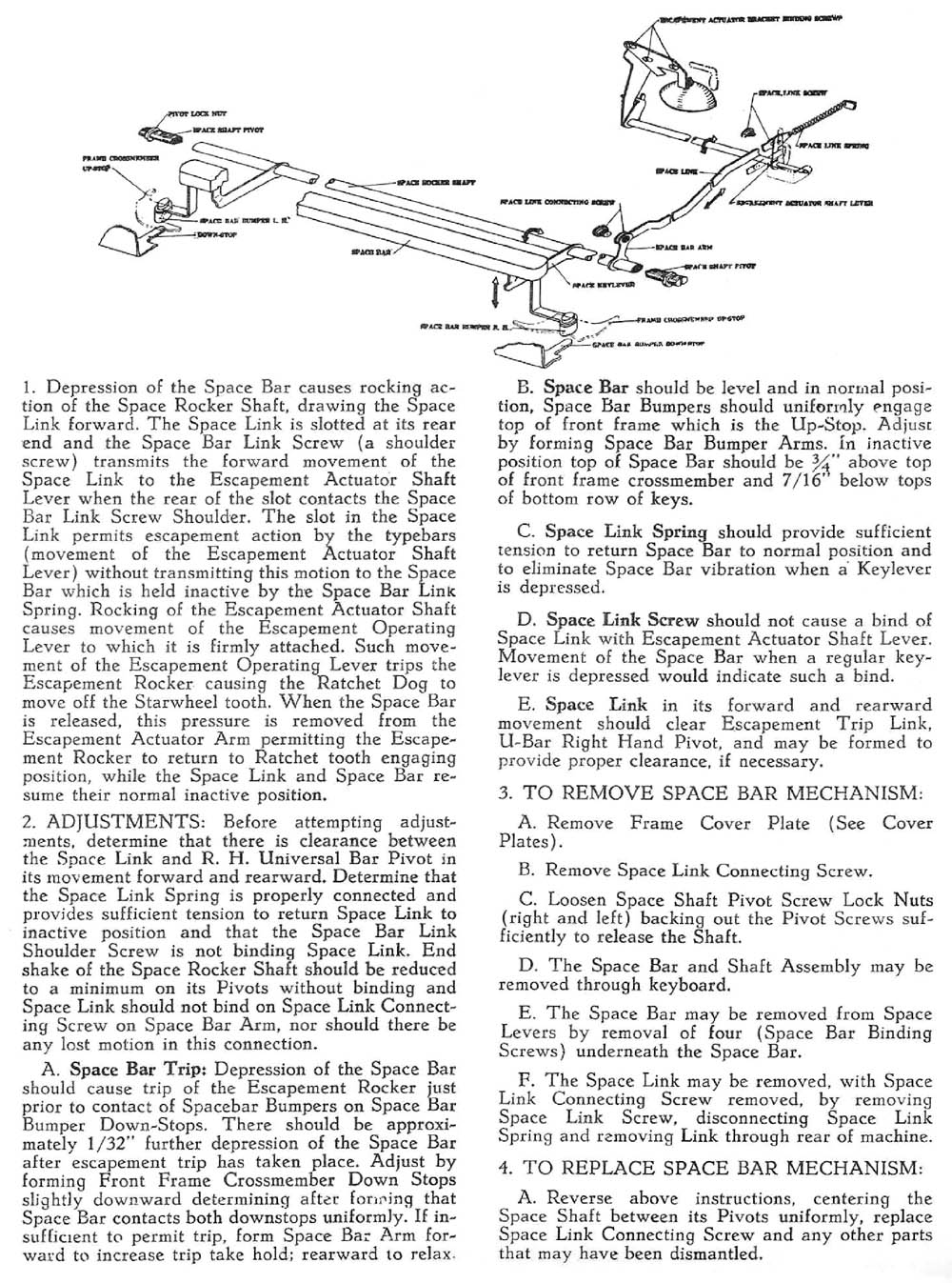

Space Bar

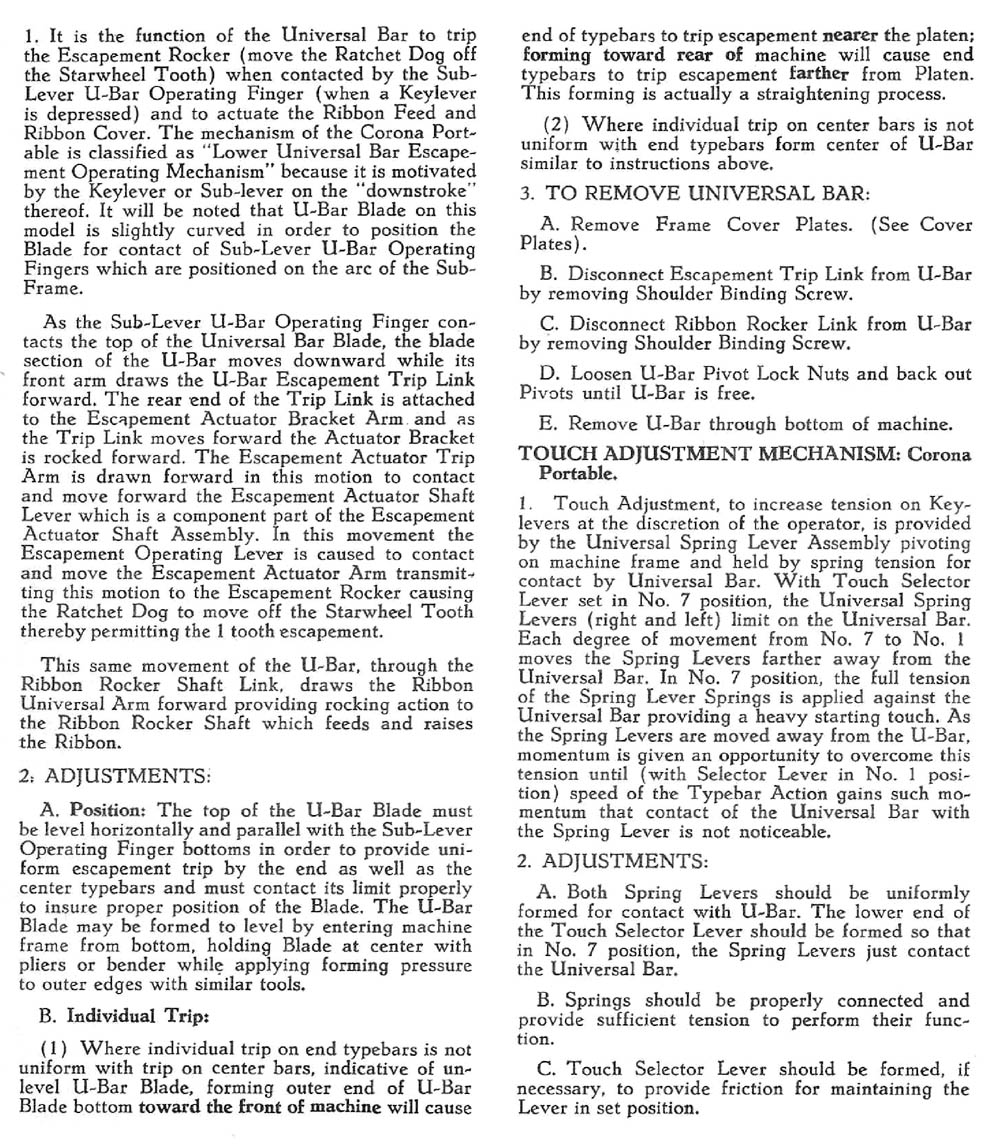

Universal Bar

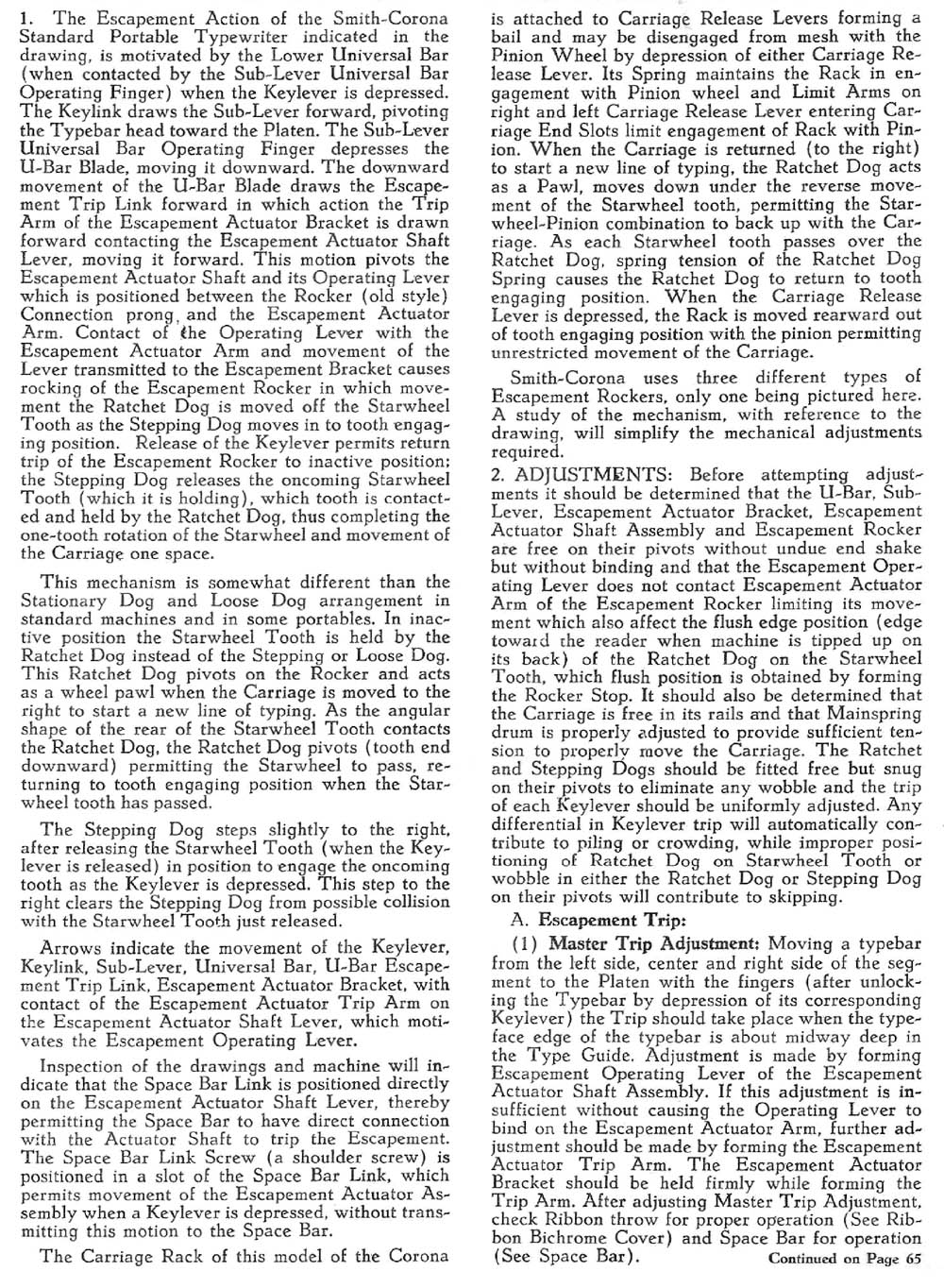

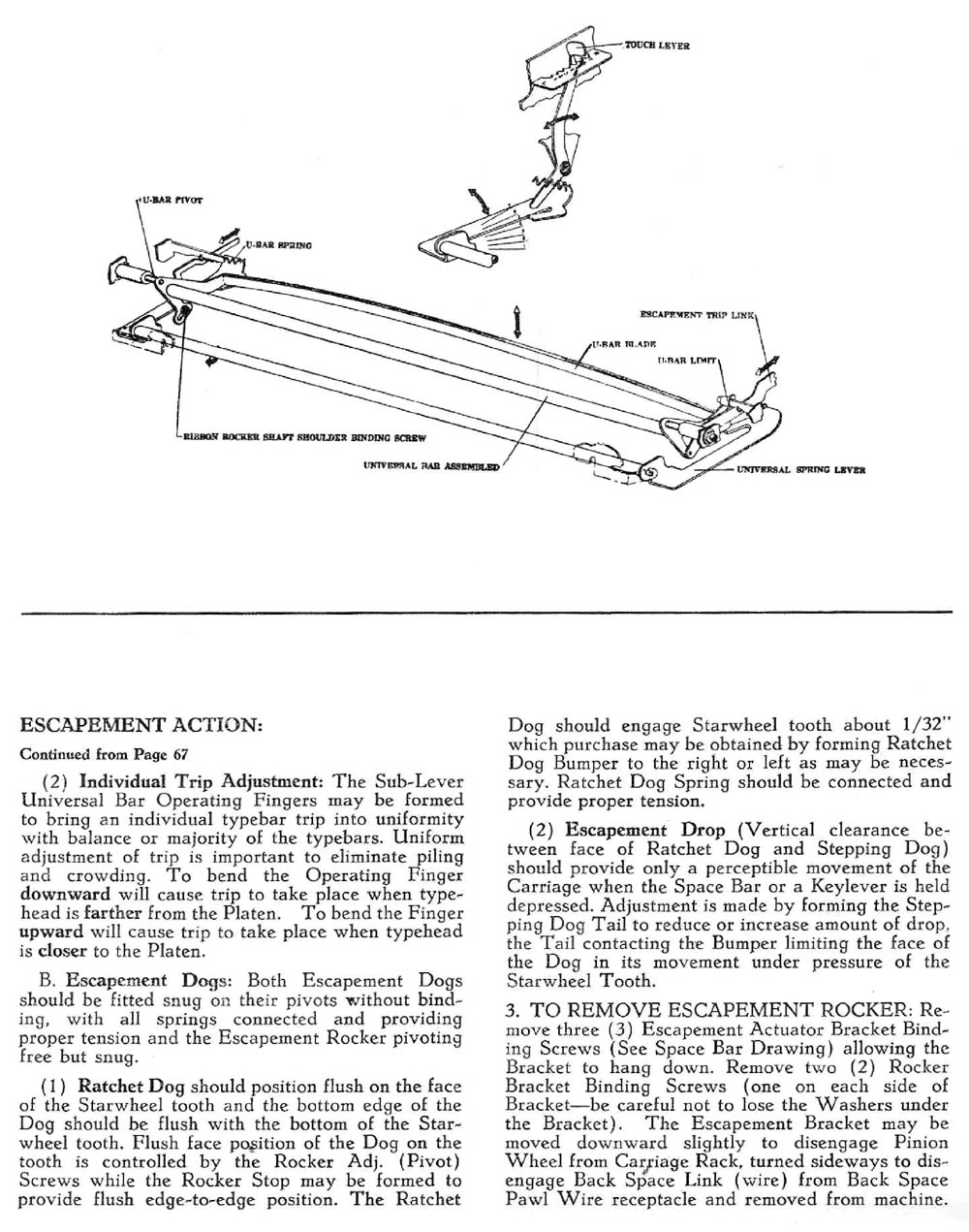

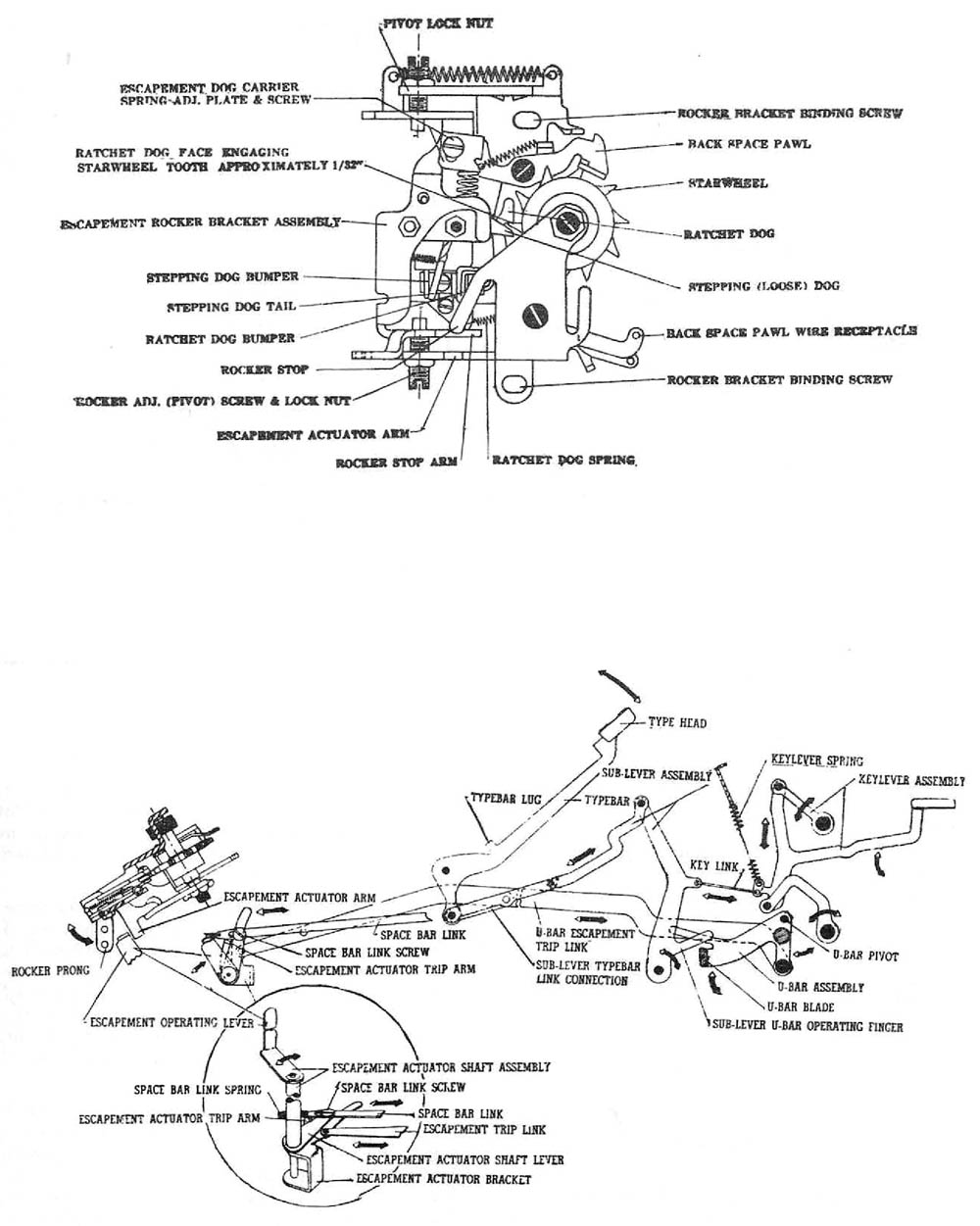

Escapement Action

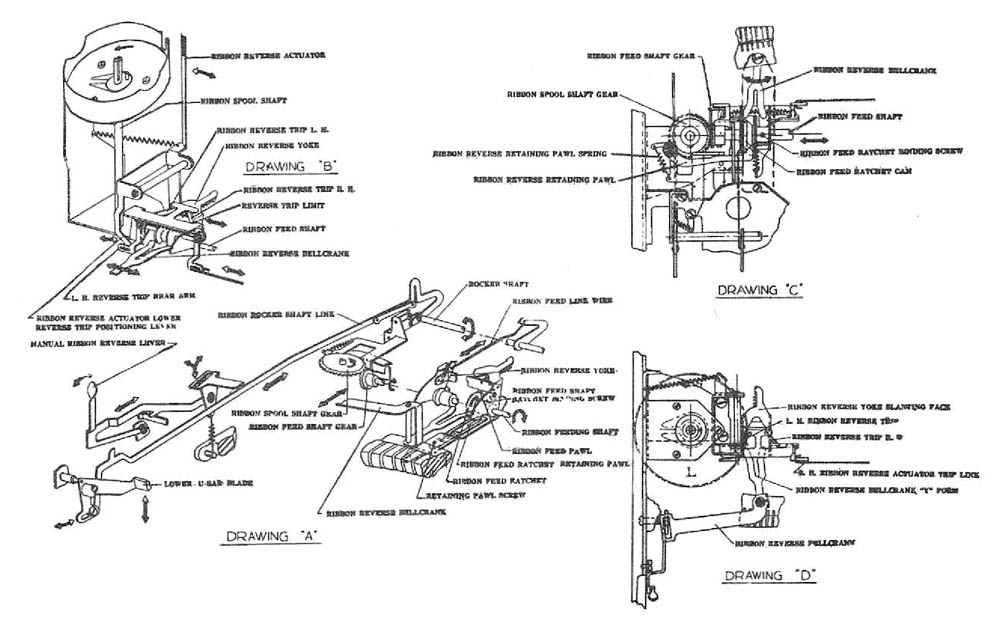

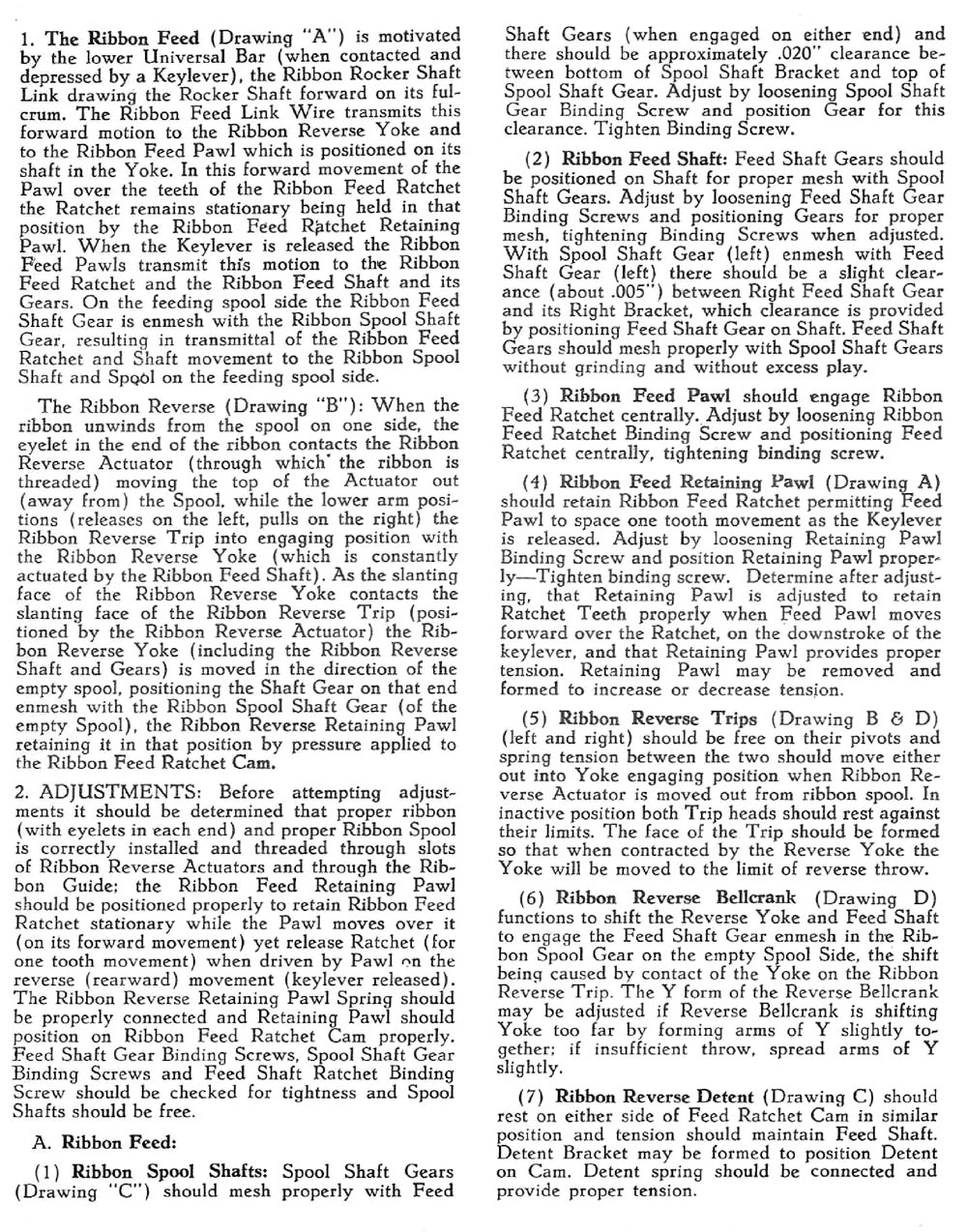

Ribbon Feed

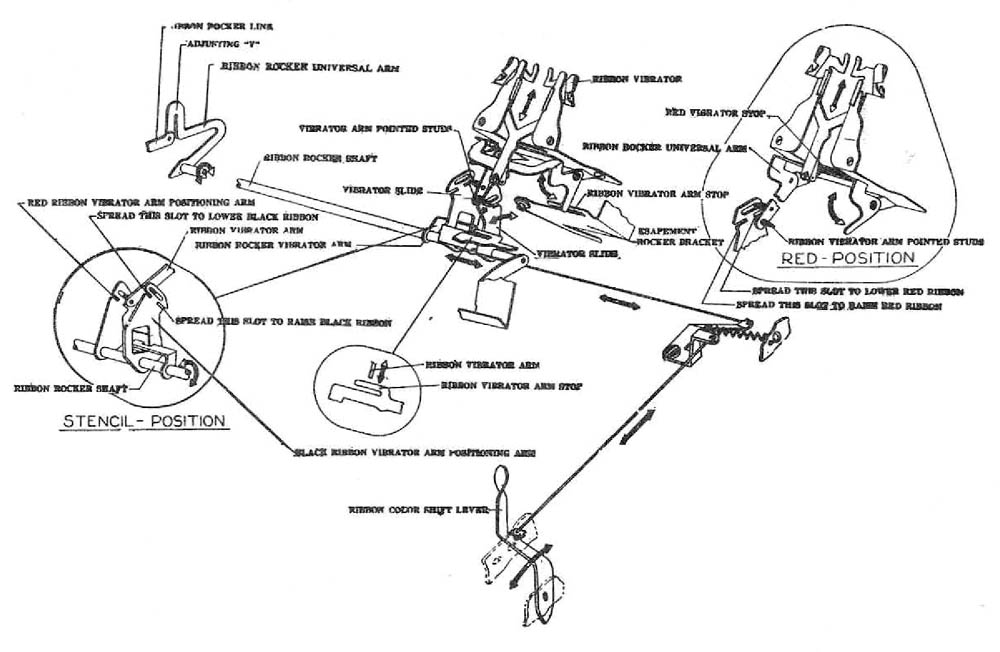

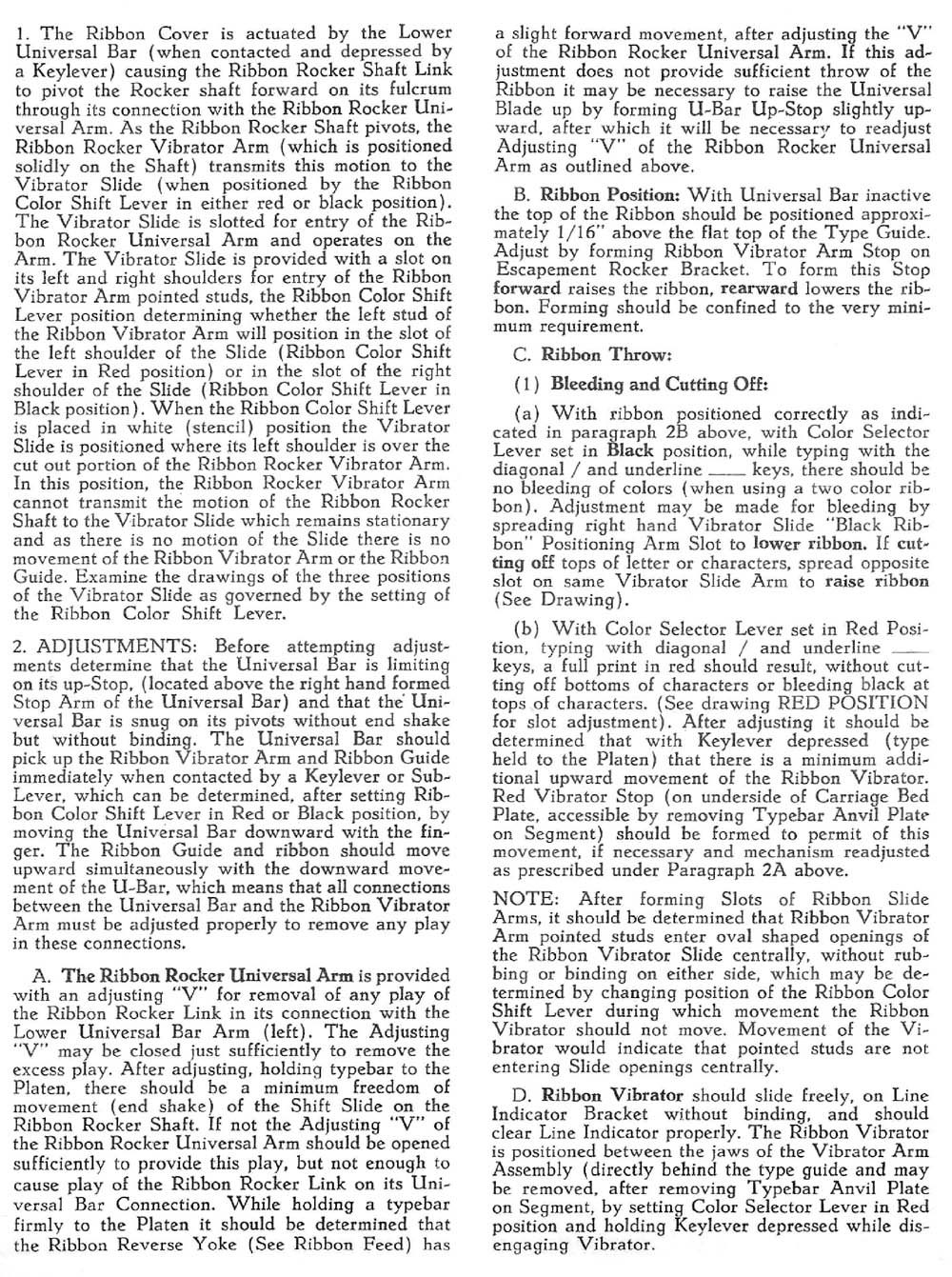

Ribbon Bichrome

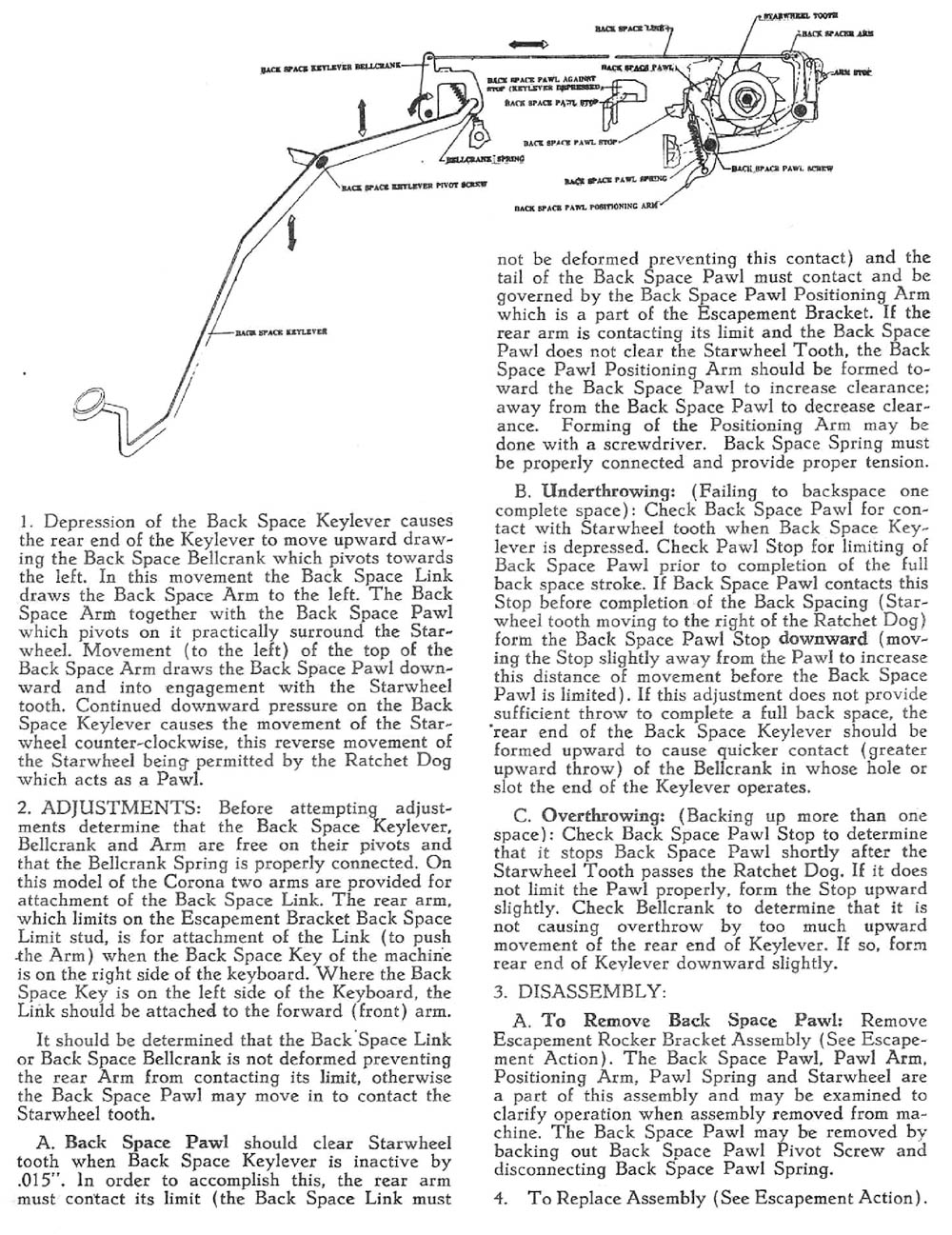

Back Spacer

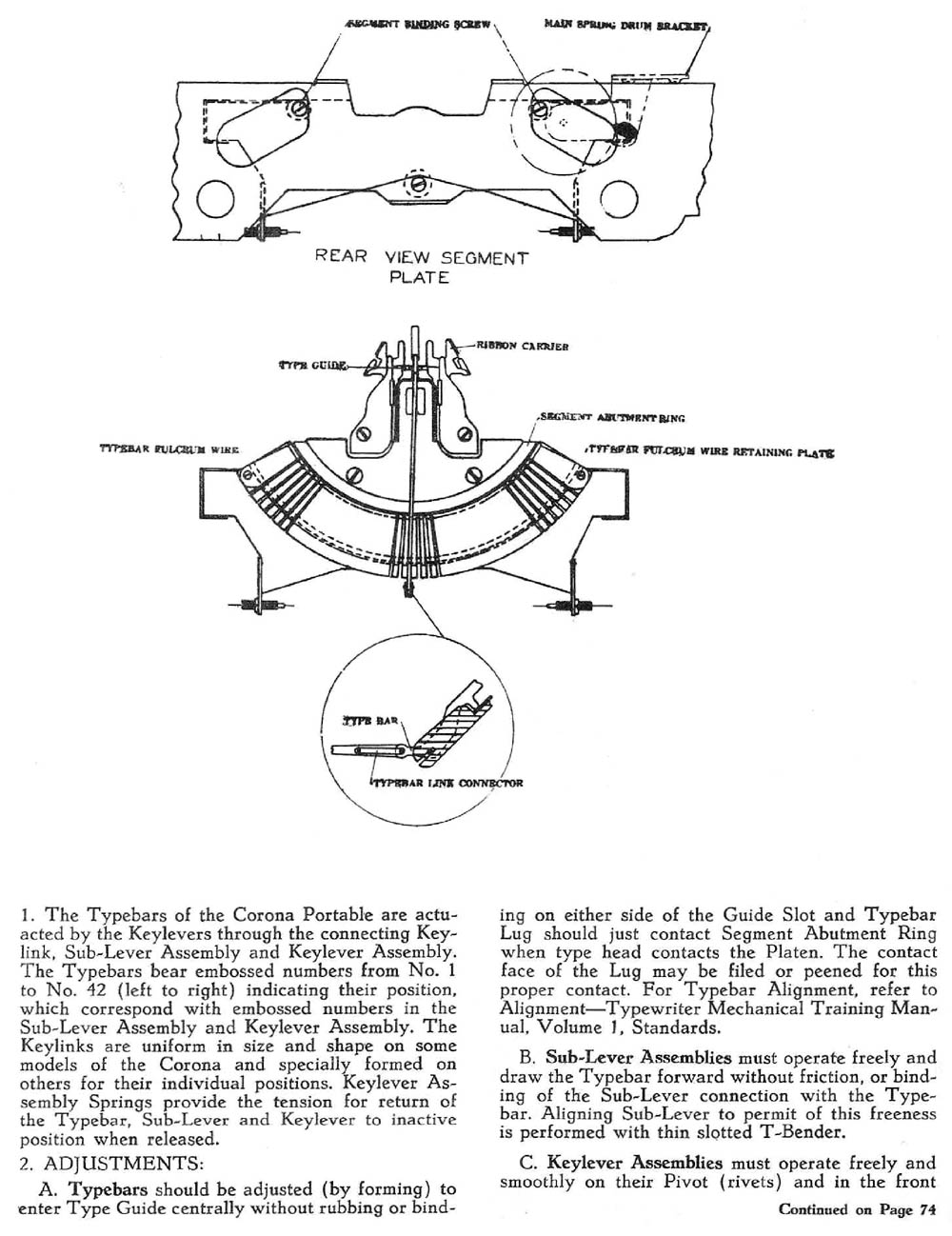

Typebars
